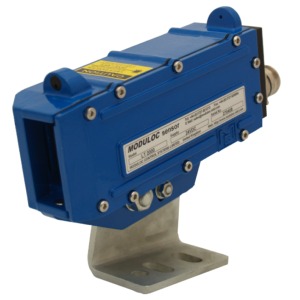

Model LT2000-ST Laser Distance
Measurement Meter with a
SLB-A "L" Bracket Mounting Stand

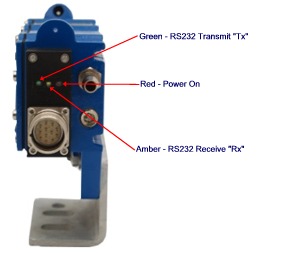

Model LT2000-ST Laser
Distance
Measurement Meter - Rear function LED's
|
The LT2000-ST
has been replaced by the MSE-LT150 Please click here for more
information.
General Description
The LT2000-ST Laser Distance Meter operates over a
substantial range off static or passing product in difficult areas in
harsh environments. The LT2000-ST measures distances over a working
range up to 30 meters off of natural surfaces, up to 100 meters off of
white surfaces and up to 150 meters off of a special reflector. For
operation with automated positioning control of material handling
transport systems a white reflective target is used or the special
reflector is used.
Especially suited for precise detection and measurement of cold/hot
product at temperatures up to 600°C (1112°F) . For higher product temperature a
Model LT2000-HT is available for measurement of cold/hot product at
product temperatures up to 1200°C (2192°F).
Straightforward alignment is easily accomplished via the visible red
laser measuring beam.
Accuracy is +/- 2mm to +/- 5mm according to
ambient temperature and surface reflectivity. Repeatability is +/- 0.5mm
and the user scalable resolution is 0.1mm.
The zero offset and the span of the 4 - 20mA analog output are both user
programmable. The distance offset is also user programmable, this allows
the user to define a zero point independent of the analog output zero
offset.
Provided with a user programmable digital switching output which is
triggered by exceeding in the positive or negative direction a user
programmable distance threshold. The hysteresis of the digital switching
output is also programmable.
This Robust Laser Distance Meter with built-in air coolant chamber
venting as air purge. Standard operating temperature without air cooling
is +50°C and with air cooling is +60°C. Optional water cooling is
available for an operating temperature up to +120°C.
The LT2000-ST Laser Distance Meter provides a highly accurate
measurement reading. It is ideal for length and width determination, and
checking position of product in and around furnace areas.
Supplied as standard with a switch selectable RS232 & RS422 serial
interface with a 2400 to 38,400 Baud Rate & a programmable 4 - 20mA 16
BIT analog output. An optional ProfiBus DP Gateway Interface Box is
available. ProfiBus DP, DeviceNet and Ethernet Interface Options will
soon be available.
|
